EUPP Modules - LED Display

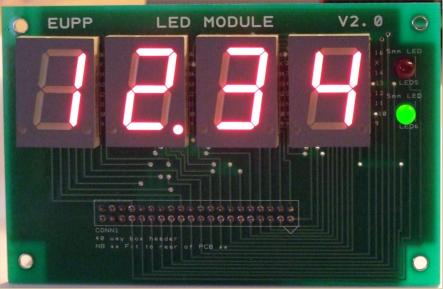

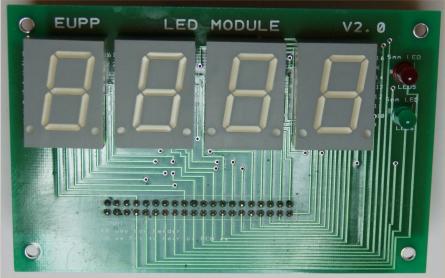

The LED display utilizes a
proprietary board which
holds four 0.8 inch seven
segment LED displays and
two discrete LED's.
The display includes a 40
way IDC header which
accepts a 40 way
appropriately terminated
cable, this cable links the
display to the main board,
the 40 way cable length
will be provided to suit
application.
The behaviour of the
display and function of two
discrete LED's are all
controlled by the software
running on the main board
and will vary depending on
the application.
The LED module usually displays
numerical data, the Red and Green
LED’s can be used to show status
such as pass or fail.

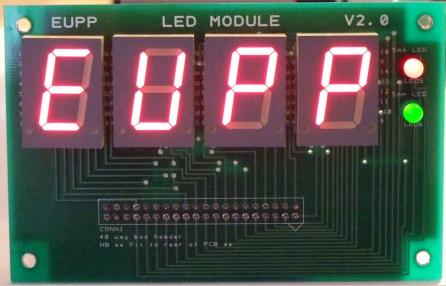

Since the LED display is under
software control, certain alphabetical
characters can also be displayed.
